Project 2
Contextual Fit
Architectural Design 2 - Arc 257
With this project, we have been given the assignment with designing an addition to the Smith House, originally built in 1965 by architect Richard Meier. The new design has to respect the original architectural work by analyzing and incorporating its existing systems and patterns into the addition. We are also tasked to create a concept that responds to the homeowner's needs, while adding new elements or systems not originally apart of the original house.
Narrative
Hierarchy: Family room
Meta Idea: Football
The Smith family recently have asked for an addition to their house, they are big fans of the sport of football and also value spending time together as a family. Their current home they feel lacks a space for the family to gather and watch their sport. With respect to the existing conditions of the house, the Smith family wants a big family room added that takes the form of a football shape.
Additionally, they want an exercise room added so that the family can work out and they also want a master bedroom added with a massive window facing directly towards the waterside part of the property. Lastly they want a patio and deck added to the property as well as everything else.
Sorting of Space
Spacing:
Public:
Patio
Dining Room
Kitchen
Living Room
Family Room
Deck
Individual:
Master Bedroom
Master Bath
Bedrooms
Bathrooms
Exercise Room
Group:
Exercise Room
Patio and Deck
Family Room
Private:
Master Bedroom
Master Bath
Bedrooms
Bathrooms
Existing Floor Plans

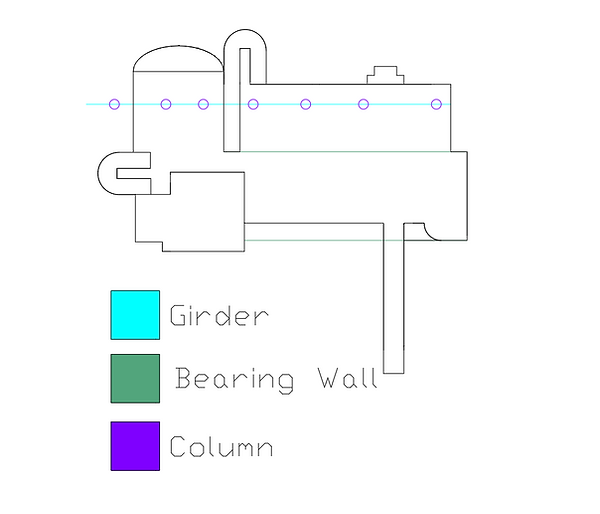

Existing Building Systems & Patterns
Final Floor Plans
Lower Level
Floor Plan
Entry Level
Floor Plan
Upper Level
Floor Plan
New Floor Plan Analysis
Additive/Subtractive
Circulation
Structure
Hierarchy
Indoor/Outdoor
Open/Close
Preliminary Design
The images below are three of the preliminary designs which were I made by mapping out the necessary masses and circulation path. After concluding which one flowed the most well with the original circulation and which one had the most potential, I decided to go with the third design.
Preliminary Design 1
Preliminary Design 2
Preliminary Design 3
Conceptual Meta Idea
Existing Systems
brought into the
addition
Glass Curtain Wall
Railing
Stairs
Column and Girders

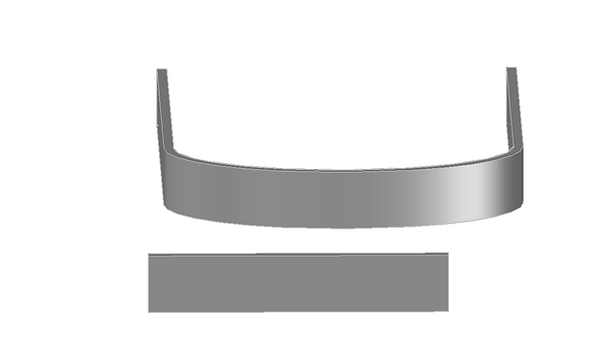

Half Wall

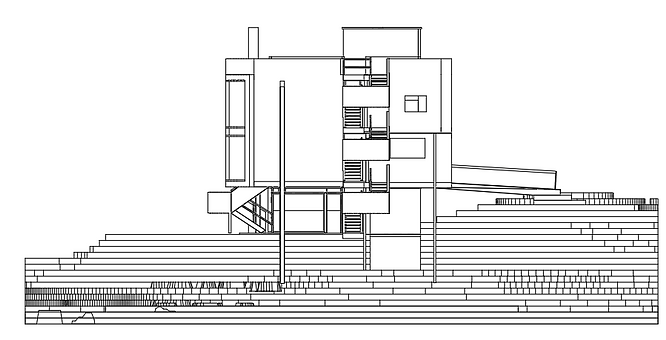

Elevations
Front/South Elevation
Back/North Elevation
Right/East Elevation
Left/West Elevation

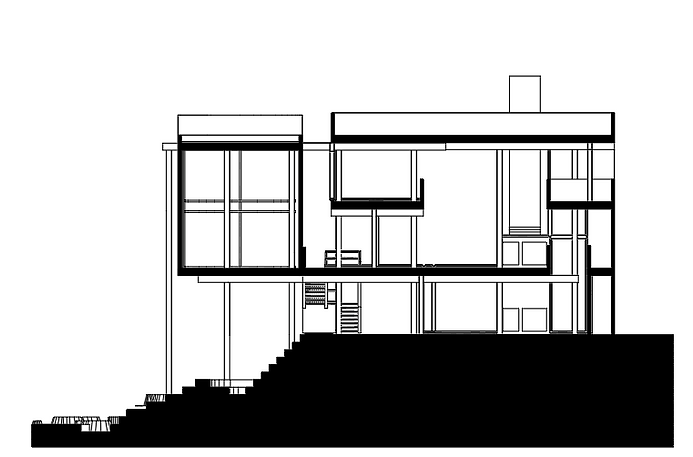

Sections

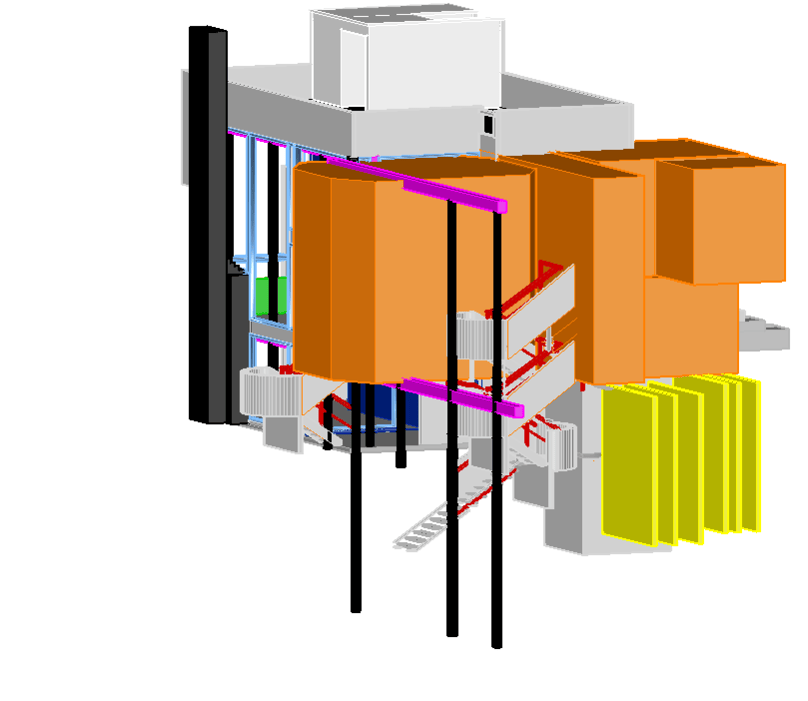

3-D Sections
Transformation Process

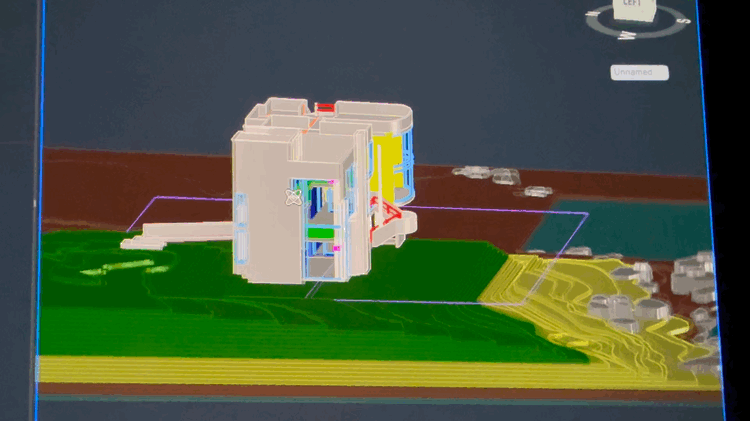

3D View
Renders
